OVERVIEW
Z4KENCC3XS
- ZyPer4K-XS Encoder Copper
- AV over IP
- 10 Gbps - Uncompressed 4K - SDVOE
- Encoder
0%

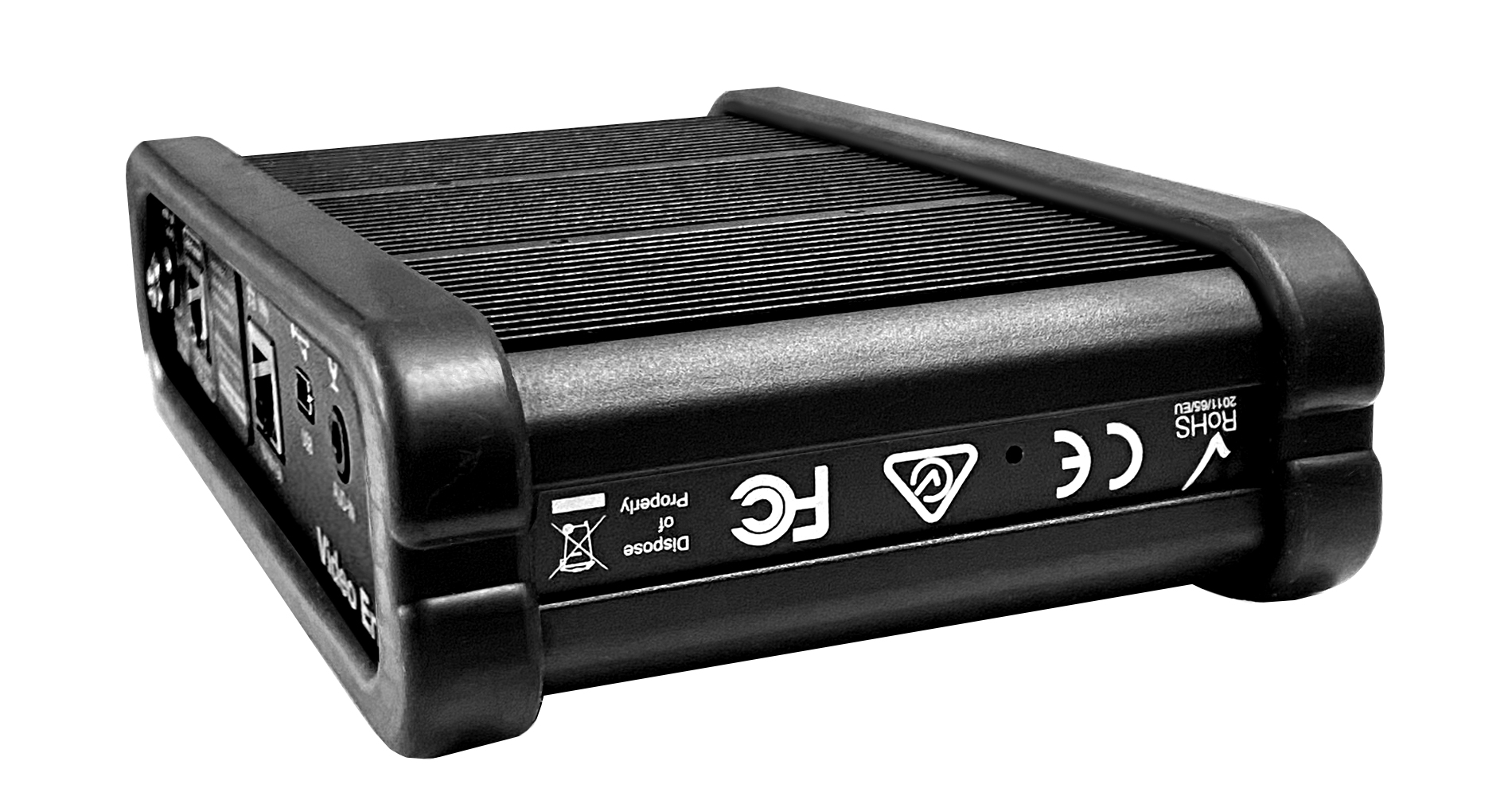

Z4KENCC3XS HDMI 2.0 input Encoder, with IP streaming via 10Gbit/copper. PoE. Supports HDMI and analog audio input. USB supported with between ZyPer4K XS/XR devices. Includes power supply. Compatible with any ZyPer4K Decoder. Cables not included.
What's in the box?
- ZyPer4K-XS Encoder Copper
- Power Supply
SPECIFICATIONS
Z4KENCC3XS
ZyPer4K-XS Encoder Copper | Information |
Video | HDMI 2.0 with HDCP pass-through |
Audio (Digital) | Encoded audio formats and linear PCM up to 8 channels |
Audio (Analog) | Unbalanced Stereo (Output) |
USB | Single Mini USB 2.0 Type B port |
Formats | Supports all major VESA resolutions and variations including full HDMI 2.0 support:
|
Video Other | Color depth: 24 bit, 30 bit, 36 bit, 48 bit |
Video Wall and Multiview | Video Wall up to 15x15. Multiview with up to 19 sources. |
Signal transmission distance | Cat6a: 100m |
Copy Protection/Security | HDCP 2.2, AES-128 Encryption, 802.1X compatible |
Power input (locking connector) | 12V DC |
Power | Approximately 8 watts |
Dimensions (L x W x H) / Weight | 7.8 in (199mm) x 4.6 in (116mm) x 1.9 in (47mm), 30.0 oz (850g) |
Temperature | Operating temperature: 32 F to 104 F <0 C to +40 C> Storage temperature: -4 F to +176 F <-20 C to +80 C> |
Humidity | Operating/ Storage: 20% to 90% (Non-Condensing) |
