OVERVIEW
Z4KDECFLXR
- ZyPer4K-XR Decoder Single-Mode Fiber Rugged Enclosure
- AV over IP
- 10 Gbps - Uncompressed 4K - SDVOE
- Decoder
0%

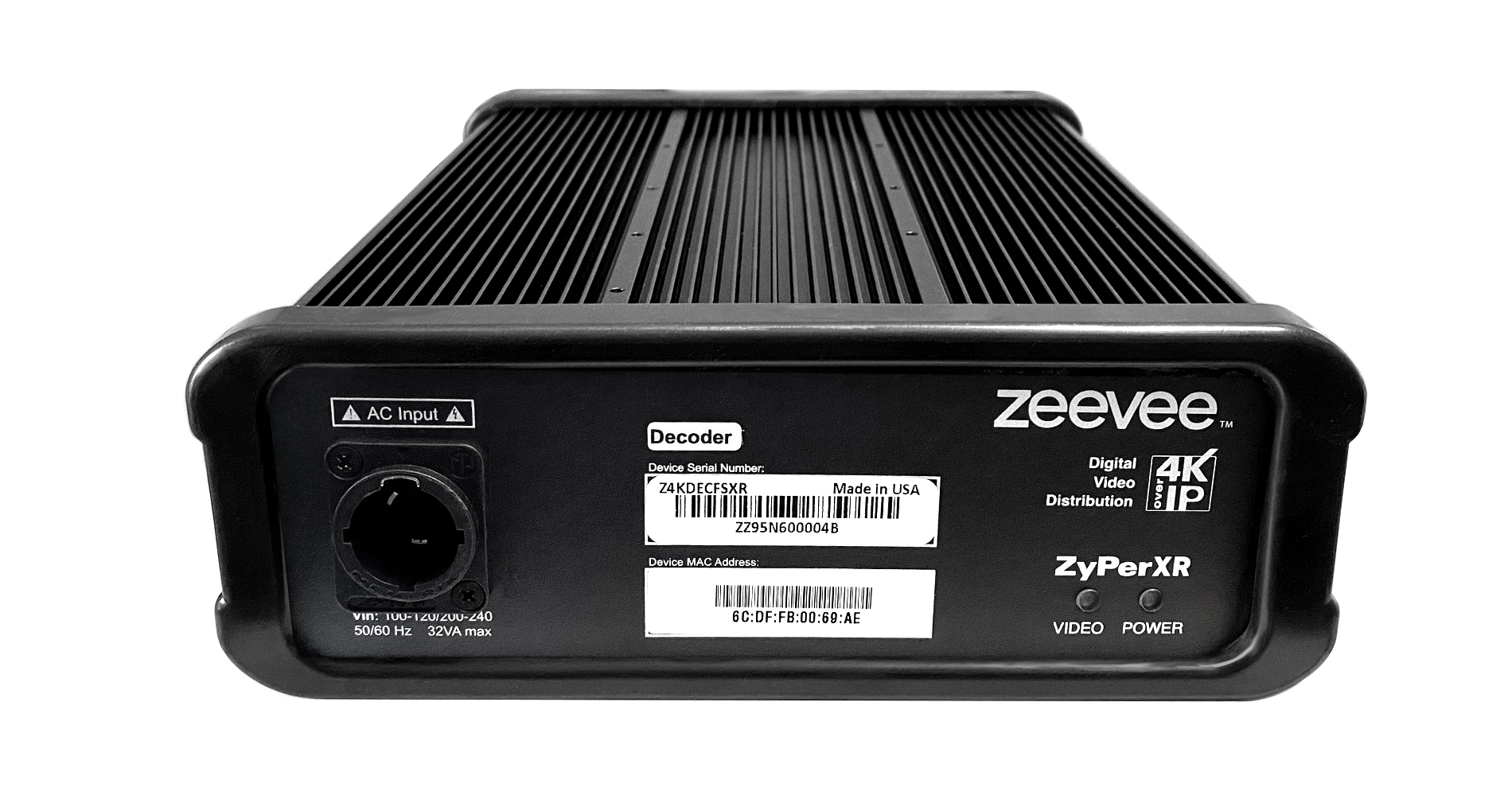

Z4KDECFLXR is an HDMI 2.0 AVoIP Decoder that is part of the ZyPer4k product line. It accepts IP streaming over 10Gbit/1300nm Single-Mode Fiber up to 4KP60 4:4:4 resolution with embedded audio and HDCP 2.3 encryption at zero-frame latency. USB supported between ZyPer4k-XS/XR devices. Video compatible with any ZyPer4K AVoIP Encoder. AC power port, 1GB utility port, and M10 Truss Clamp mounting hole. The enclosure and all Switchcraft or Neutrik connectors are rugged.
What's in the box?
- ZyPer4K-XR Decoder Single-Mode Fiber Rugged Enclosure
SPECIFICATIONS
Z4KDECFLXR
ZyPer4K-XR Decoder | Information | Connector |
Video | HDMI 2.0 with HDCP pass-through | Switchcraft EHHDMI2 “HDMI 2.0 type A” |
Audio (Digital) | Multi-channel linear PCM up to 8 channels (7:1) | Switchcraft EHHDMI2 “HDMI 2.0 type A” |
Audio (Analog) | Unbalanced Stereo (Output) | Switchcraft D3F-XLR “3-pin XLR” |
USB | Single USB 2.0 | Switchcraft EHUSBABX “USB Type A” |
Ethernet | 10 Gb for Video/Audio/Control with 1 Gb Utility | 10 Gb Neutrik NE8FDX-P6 “RJ45” with PoE support 1 Gb Neutrik NE8FDX-P6 “RJ45” port |
Mounting | Mounting hole for standard truss clamps | M10 hole on one side of unit |
Other Specifications | ZyPer4K-XS Decoder Fiber |
Formats |
|
Video Other | Color depth: 24 bit, 30 bit, 36 bit, 48 bit |
Video Wall and Multiview | Video Wall up to 15x15. Multiview up to 19 sources |
Signal transmission distance | Multimode fiber optic line: 300m |
Copy Protection/Security | HDCP 2.2, AES-128 Encryption, 802.1X compatible |
Power input (locking connector) | 120/220V AC Power |
Power | Approximately 9 watts |
Dimensions (L x W x H) / Weight | 8.7 in (220mm) x 7.8 in (199mm) x 2.8 in (71mm), 74.0 oz (2100 g) |
Temperature | Operating temperature: 32° F to 104° F <0° C to +40° C> Storage temperature: -4° F to +176° F <-20° C to +80° C> |
Humidity | Operating/ Storage: 20% to 90% (Non-Condensing) |
Warranty | 3 years |
